TSE平行同向双螺杆挤出机
当前位置： 首页 > 产品展示TSE-40高扭矩平行双螺杆

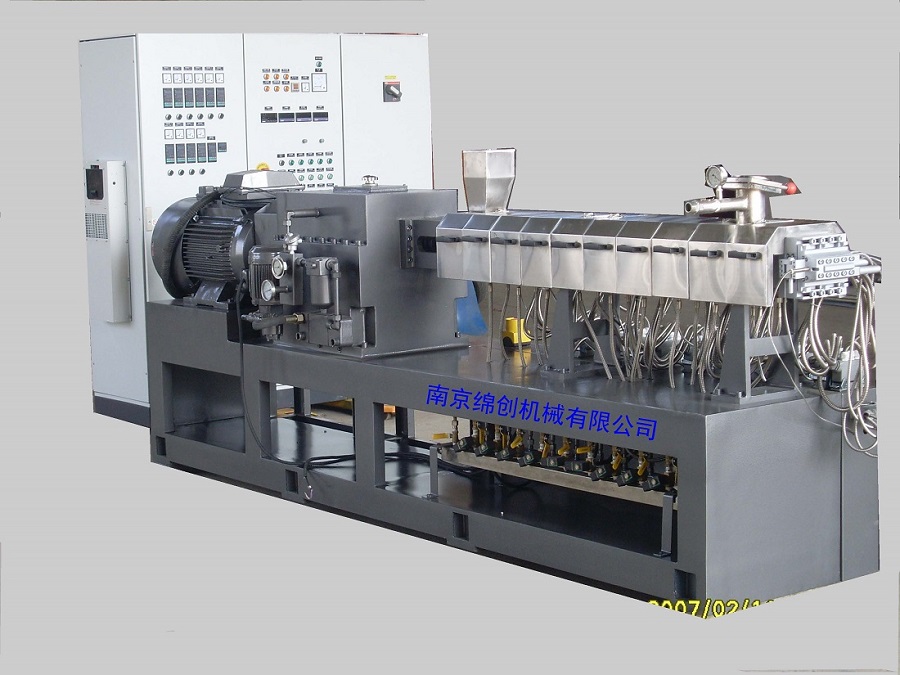

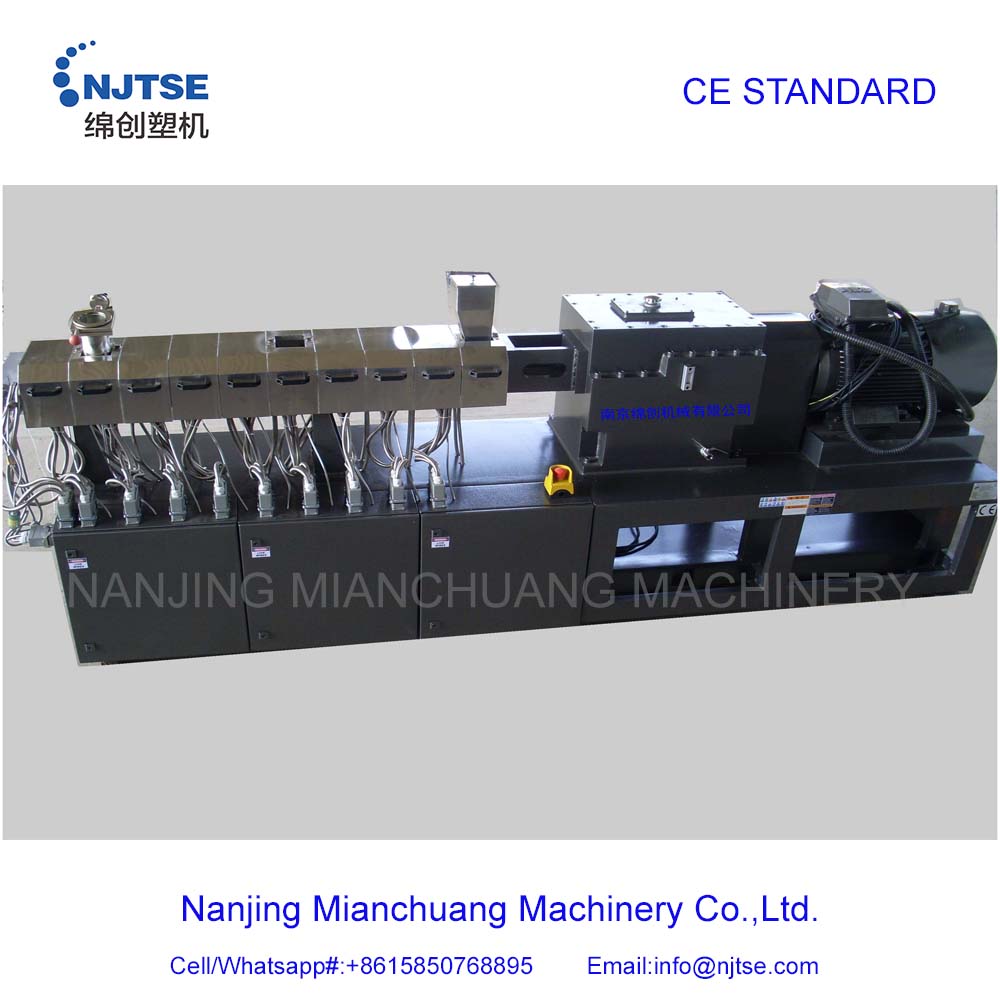

产品型号：TSE-40
40高扭矩平行双螺杆挤出机
高扭矩，低能耗，可以做实验，也可以用于小批量生产
产品参数
| 型号 |
螺杆直径 （mm） |
驱动电机功率 （kw） |
螺杆转速 （rpm） |
可选长径比 |
生产能力（kg/hr） |
| TSE-26 | 25 | 5.5 | 500 | 20-48 | 1-2 |
| 7.5 | 500 | 20-48 | 2-5 | ||
| 15 | 600 | 20-48 | 5-10 | ||
| 22 | 900 | 20-48 | 10-20 | ||
| 30 | 1200 | 20-48 | 20-30 | ||
| TSE-32 | 32 | 11 | 500 | 20-48 | 20-30 |
| 15 | 600 | 20-48 | 20-40 | ||
| 22 | 900 | 20-48 | 40-50 | ||
| 65 | 1200 | 20-48 | 50-80 | ||
| TSE-40 | 40 | 30 | 500 | 20-48 | 100-150 |
| 45 | 600 | 20-48 | 150-200 | ||
| 55 | 600 | 20-48 | 200-300 | ||
| 132 | 1200 | 20-48 | 300-350 | ||
| TSE-50 | 50 | 45 | 500 | 20-58 | 200-300 |
| 75 | 600 | 20-68 | 400-500 | ||
| 132 | 600 | 20-68 | 500-700 | ||
| 200 | 1200 | 20-68 | 700-800 | ||
| TSE-58 | 58 | 110 | 500 | 20-68 | 600-800 |
| 160 | 600 | 20-68 | 700-800 | ||
| 250 | 900 | 20-68 | 800-900 | ||
| 315 | 1200 | 20-68 | 800-1000 | ||
| TSE-70 | 70 | 160 | 600 | 20-72 | 600-800 |
| 250 | 600 | 20-72 | 800-900 | ||
| 355 | 900 | 20-72 | 800-1000 | ||
| 710 | 1200 | 20-72 | 1000-1200 | ||
| TSE-92 | 92 | 250 | 500 | 20-68 | 600-800 |
| 355 | 600 | 20-68 | 700-800 | ||
| 415 | 600 | 20-68 | 800-1000 | ||
| 710 | 600 | 20-68 | 1000-1200 | ||
| TSE-119 | 118 | 355 | 300 | 20-68 | 600-800 |
| 415 | 300 | 20-68 | 700-800 | ||
| 550 | 300 | 20-68 | 800-1000 | ||
| 960 | 400 | 20-68 | 1000-1200 | ||
| TSE-133 | 133 | 550 | 300 | 20-64 | 1000-1200 |
| 710 | 300 | 20-64 | 1200-1500 | ||
| 960 | 400 | 20-64 | 1500-2000 | ||
| 1400 | 400 | 20-64 | 1500-3000 |
